v-slot for OpenSCAD

Discussion in 'CAD' started by Franco Ponticelli, Aug 3, 2014.

  1. Franco Ponticelli

    Franco Ponticelli Journeyman
    Builder

    Joined:
    Dec 4, 2013
    Messages:
    63
    Likes Received:
    13
    Since I was not able to find any v-slot for OpenSCAD, I made my own:
    https://github.com/fponticelli/smallbridges

    Right now they are quite high-def and I might add some options later to make them simpler for performances.

    [​IMG]

  2. Glenn West

    Glenn West Well-Known
    Builder

    Joined:
    Dec 5, 2013
    Messages:
    22
    Likes Received:
    7
    Nice. What about a cutout version.
    It would make it nicer to build corner components.

  3. Franco Ponticelli

    Franco Ponticelli Journeyman
    Builder

    Joined:
    Dec 4, 2013
    Messages:
    63
    Likes Received:
    13
    What do you mean exactly? I am not sure I understand ;)

  4. Glenn West

    Glenn West Well-Known
    Builder

    Joined:
    Dec 5, 2013
    Messages:
    22
    Likes Received:
    7
    In building a corner component, or a frame, (In delta we call it a vertex), its handy to "subtract" a vslot
    from the body.

    Example code of something I was doing this morning.

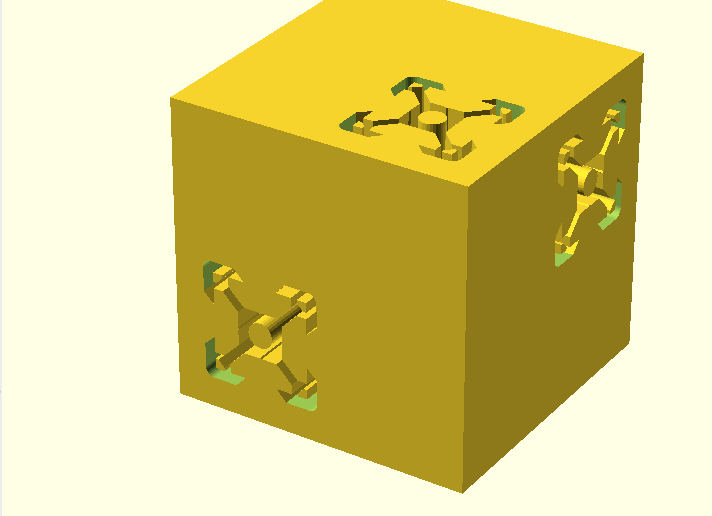

    When you use this, you get more complexity that needed. It results in non printable part.[​IMG]

    include <MCAD/units.scad>;

    include <MCAD/materials.scad>

    use <MCAD/shapes.scad>;

    use <smallbridges/scad/bom.scad>;

    use <smallbridges/scad/vslot.scad>;





    module body()

    {

    cube([50,50,50]);

    }





    module vslot_cutouts(){



    $fn = 32;



    translate([35,35,0]) rotate([0,0,90]) vslot20x20(200);

    translate([15,0,35]) rotate([0,90,90]) vslot20x20(200);

    translate([0,15,15]) rotate([0,90,0]) vslot20x20(200);

    }





    module corner()

    {



    difference(){

    body();

    union() {

    vslot_cutouts();

    }

    }



    }



    corner();

  5. Franco Ponticelli

    Franco Ponticelli Journeyman
    Builder

    Joined:
    Dec 4, 2013
    Messages:
    63
    Likes Received:
    13
    Oh I see. I was planning to make a simplified version of it to speed up rendering time but to be honest I just didn't feel the need yet. If I recall correctly commenting out the part that subtract the holes on the corners and the one in the middle should be pretty trivial. Feel free to create a pull request if you find yourself adding interesting features to that file.
