What was your first build? [CONTEST] **CLOSED**

Discussion in '* CONTESTS * Win Cool Stuff!' started by MaryD, May 24, 2016.

Thread Status:
Not open for further replies.
  1. MaryD

    MaryD Master
    Staff Member Moderator

    Joined:
    Apr 13, 2016
    Messages:
    272
    Likes Received:
    228
    My 1st Build_v2.png
    Brought to you by
    We proudly support the Open Source community


    HOW DO I ENTER?
    It’s easy!
    Simply tell us a little about your 1st build below for a chance to


    WIN FREE SHIPPING**

    EVERYONE* is welcome and encouraged to join in!
    NO PURCHASE NECESSARY TO ENTER OR WIN.

    *Must be at least 18 years old to participate. 1 Entry per person.
    Contest ends 12:00 Midnight ET on May 31, 2016.


    Winner will be drawn at random from all eligible entries. One (1) prize will be awarded in the form of a discount code that can be used during checkout process at OpenBuilds Part Store giving the redeemer up to $99 US off of the shipping costs on a single order. The Prize code will be sent to the winner via forum message no later than June 3, 2016. OpenBuilds is not responsible for undelivered or unread messages. OpenBuilds management will make the final determination of the prize winner. No alternate prizes will be awarded. **Prize Retail value up to $99.00 US.

  2. Carl Feniak

    Carl Feniak Master
    Builder

    Joined:
    Mar 18, 2014
    Messages:
    645
    Likes Received:
    202

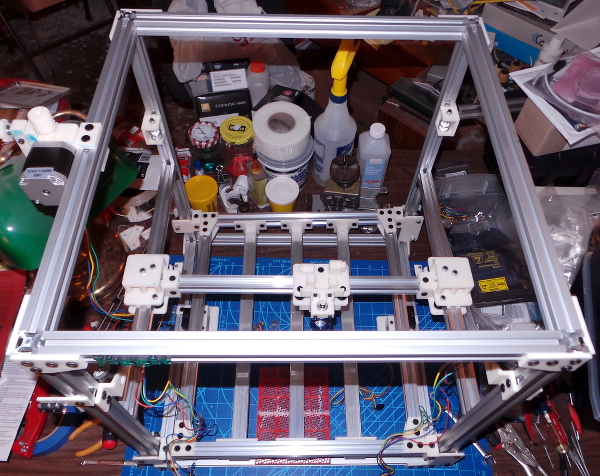

    Here is my first build. It is a H gantry 3D printer that eventually led to the development of the CoreXY 3D printer published as the C-Bot.


  3. blindflight

    blindflight Veteran
    Staff Member Resident Builder Builder

    Joined:
    Sep 19, 2013
    Messages:
    33
    Likes Received:
    32
    My C-Beam McDrew DSC_3170.jpg DSC_3170.jpg DSC_3171.jpg

  4. Kyo

    Kyo Master
    Staff Member Resident Builder Builder

    Joined:
    Feb 27, 2014
    Messages:
    486
    Likes Received:
    382
    Cool, My first experience with openbuilds parts and V-slot was through my I3V kit. But I am not sure if that would really count as "my" build lol.

    Hmm I would say my first build with OB parts was a tool I needed. While building with openbuilds parts I needed a way to cut down V-slot in my small craftroom. So I designed and built the
    V-Slot Cutting System. Simple effective and still in use today :thumbsup:

    [​IMG]

    [​IMG]

    [​IMG]

  5. chenderson

    chenderson Well-Known
    Builder

    Joined:
    May 7, 2016
    Messages:
    1
    Likes Received:
    9
    cnc1.JPG cnc2.JPG cnc3.JPG My first CNC build utilizing c-beam! I also got to use the new XLarge gantry plates! I can't believe I almost bought an x-carve (that I had to assemble anyways!). Ripping through aluminum like a $100,000 Bridgeport. Can't wait to build my next large format 3D printer and laser engraver!

  6. Paul Stoller

    Paul Stoller Veteran
    Builder

    Joined:
    Feb 28, 2016
    Messages:
    40
    Likes Received:
    35
    dadeline, MaryD and Kyo like this.
  7. Alex krause

    Alex krause Journeyman
    Builder

    Joined:
    Dec 29, 2015
    Messages:
    15
    Likes Received:
    25
    My large Ox kit from smw3d with Custom spindle mount reworked by Alex Lee from Eric Lein's awesome designs
    download_20160512_114244.jpg IMG_20160404_114317662.jpg


    Attached Files:

  8. Balu

    Balu Veteran
    Builder

    Joined:
    Apr 14, 2014
    Messages:
    72
    Likes Received:
    25
    Well, one of the first more technical builds must've been this:


    I remember it quite well, because I got my first very own "personal computer" - a Commodore C128 D(!) - the same christmas. Me and my brother were so surprised that we had to overcome the shock by building our Lego sets first.

    A few days ago I bought my latest Lego kit after about 25 years not touching Legos it felt amazing to put something like this together again. 484 pages manual, ~2800 pieces, ... I'm still discussing if I am still a child or if buying this on my own because I can makes me an adult. ;-)


    In case this was about the first thing build with OpenBuild parts, that must be my Egg Painter Variant I built to get a feel of the parts. It's in a box right now, but I still want to change / improve some things before the next season.


    The next build is hopefully going to be a 3D printer based on the C-Bot by @Carl Feniak (see above :))

  9. alex_b

    alex_b Journeyman
    Staff Member Resident Builder Builder

    Joined:
    Jan 31, 2015
    Messages:
    24
    Likes Received:
    55
    First build was our Ronin OX last year adapted for flood coolant cutting. Since we got our flood C-Beam up and running recently, it has since been reverted back to a wood cutting machine but our OX served that purpose well...:)

    2015-08-08 21.29.54 - Copy.jpg 2015-11-19 07.35.10.jpg

  10. ensari cokur

    ensari cokur Well-Known
    Builder

    Joined:
    May 5, 2016
    Messages:
    26
    Likes Received:
    6
    My first CNC Router. Still Building.


    Attached Files:

    dadeline, MaryD, Kyo and 1 other person like this.
  11. Keith Davis

    Keith Davis Master
    Builder

    Joined:
    Dec 11, 2013
    Messages:
    170
    Likes Received:
    112
    My very first printer was a plywood Printrbot. Before I actually got Brook Drum's floppy thing put together I substituted the plywood for 80/20 extrusions. Man that thing was noisy!! Then I saw a video of a quiet Ordbot and was sold on getting away from linear bearings. But I really didn't like the Makerslide extrusion, it was way oversized for a printer. I tried placing the Makerslide wheels down in the 80/20 slots but the wear on the wheel was excessive. I then placed a 1/4 inch bar half turned in the slot and ran the V-wheel groove on the upturned edge of the bar. That worked but was clumsy. While researching the Ordbot I realized that Bart Dring had probably gotten the idea from Mark Carew's OpenRail design. Which gave me direction for my next attempt, I milled 45 degree Vs on the edges of a 25x6mm bar and ran the Makerslide wheels on those Vs, using the 25x6mm without bolting it to an extrusion. That worked well, but I needed a metal plate to bolt the wheels to instead of a printed part. While googling for a Makerslide X mount plate I discovered that Mark had a new design - he'd out-thought me and Bart. And that was so obvious, that I didn't even get off the page before ordering some V-slot extrusions, wheels and a few mount plates. My first V-Slot printer was the BldrBot which I sold 10 of on Ebay in July 1014. But the Prusa 13 adaptation for the Z axis wasn't strong enough - so it was back to the drawing board....

    [​IMG]

    dadeline and MaryD like this.
  12. evilc66

    evilc66 Veteran
    Builder

    Joined:
    Jan 9, 2015
    Messages:
    223
    Likes Received:
    83
    I'm in the process of two "first builds" I count them both as firsts, as neither one is finished, and I'm building them at the same time ;)

    First one, at least, the one that was ordered first, is a C-Beam Machine kit that I'm leaving mostly stock. The only change will be increasing the gantry height by 50mm by changing the uprights to 300mm, versus the stock 250mm. Spindle is an 800W watercooled Chinese VFD spindle controlled by a Teco 110v VFD. Motion control is dealt with by an Arduino Uno and a CNC shield (DRV8825 drivers).

    My second "first" build is my attempt at an LCD resin printer.

    [​IMG]

    Still a work in progress, but it's sporting a 500mm C-Beam actuator, but won't have full travel due to how it's mounted. 300mm of travel should be doable, but even that will be a lot. Overall printing area will be the full size of the LCD (196mm x 147mm), which is a gen3/4 iPad retina display. This will give me 96 micron X/Y resolution, and hoping for ~10 micron resolution in the Z.

    Still working on finding out how short of a wavelength of light that I can pass through the LCD without it being attenuated too much by the polarizer. If I can get below 430nm, I should be able to use commercially available UV resins instead of having to stick to daylight cure resins. Time will tell.

    dadeline and MaryD like this.
  13. rpcelectronics

    rpcelectronics Well-Known
    Builder

    Joined:
    Apr 16, 2015
    Messages:
    1
    Likes Received:
    7
    So you'll have to stick with me on this...

    My application for OpenBuilds parts isn't traditional. I originally bought a C Channel linear actuator kit for something to play around with. I'm also a woodworker and I am constantly looking at ways that I can implement CNC technology into the world of woodworking. One of the most useful, but difficult to get accurate tools is a box joint jig. Basically it's a way to cut "teeth" into the end grain of two or more boards that interlock into each other. There are two major methods. Place a pin on a sliding jig that you place the previously cut groove over to index the next cut or move the board in a carriage using some kind of mechanism to control the distance of movement each time.

    As machinists, you can imagine that being slightly off on anything would not only produce less that favorable cuts, but the error is amplified as you cut more down the board.

    Enter the DigiBox. This is a controller device that I have been designing based on a PIC18F252 microcontroller to accurately move the carriage of one of these jigs using 16 TPI all thread and a stepper motor. The OpenBuilds NEMA23 motor was the right size and torque to get the job done. So while I didn't use the whole actuator for the project, I did use the OpenBuilds NEMA23 stepper motor.

    Here are a couple of pictures of version 1 and version 2 of the controller.

    [​IMG]

    [​IMG]

    I actually don't have any pictures of the jig setup, but I do have a video demonstrating it on my YouTube channel:


  14. transformer

    transformer Well-Known
    Builder

    Joined:
    Apr 1, 2016
    Messages:
    1
    Likes Received:
    2
    are first build it started out as a 1500x1500 then cut it down to a 1500x1000 then we cut it down 34x34 being in Ontario Canada its hard to get any parts..there are some but limited .. now were working on a new dlp


    Attached Files:

    dadeline and MaryD like this.
  15. Mitch Budwick

    Mitch Budwick Well-Known
    Builder

    Joined:
    May 7, 2016
    Messages:
    1
    Likes Received:
    2
    My first build with openbuild parts is my current build. Its a large format XY printer that I started designing in SketchUp. The key to the design amongst other parameters was to be able to use stock parts with little to no modification. Any modifications were either done in the design or through clever use of different sized parts ( spacers, plates, etc ).
    All drives are lead screw, and the only thing that moves is the xy axis. The build plate which is not in yet,
    is stationary. Cant have a large plate like that being shifted back and forth.
    The power supply is meanwell 24v supply because as you can see moving the Y axis involves two motors, so those motors are wired in series to limit the amount of current I need. Wiring in series helps keep the motors in sync especially if one fails. The controller is dangling center bottom and is a Replicape board sitting on top of a beagleboard. It works well enough. Not fond of the software but we shall see.
    Its not a clear pic, but at top the 4 lead screws for Z axis are linked by #25 chain around 25 tooth chain sprockets
    to sync the movement. I was going to use 4 motors, but as usual I keep changing the design as I build. Ive
    settled on a single high torque nema 23 to run along the chain. I may choose one with a planetary gear to either down size the motor( and current) and increase resolution.

    dadeline and MaryD like this.
  16. Alberto Boria

    Alberto Boria Well-Known
    Builder

    Joined:
    Aug 20, 2014
    Messages:
    22
    Likes Received:
    4
    Here is my build (Boricua Ox)

    This was my first DIY project ever. I believe i graduate. The only change I made of the original build was using an acme 1/2"-10 rod in the Z axis.

    dadeline and MaryD like this.
  17. rschoenstein

    rschoenstein Well-Known
    Builder

    Joined:
    May 26, 2016
    Messages:
    1
    Likes Received:
    2
    Mad Max

    First full on (no kit) build using a Trick Laser Max Metal frame, Trick Trucks, Max Metal Platform, CF arms, LED Light Ring, 3x BondTech QR Extruders, heated bed/glass from a Rostock Max v2 (which I never could get calibrated), Duet 0.85/Duex4, JohnSL FSR endstop controller, FSR mounts designed by ccavanaugh, and parts I designed myself in Fusion 360.

    Mad Max is fast, accurate, and quiet.

    The build is almost finished, but currently printing the last few (redesigned) parts...

    20160526_184006389_iOS.jpg 20160526_184050129_iOS.jpg 20160526_184110994_iOS.jpg 20160526_184259082_iOS.jpg 20160526_184117557_iOS.jpg

    The Rostock Max ended up becoming a really nice shotgun target (after salvaging the steppers for my next build).


    Attached Files:

    dadeline and MaryD like this.
  18. Jose A. Molina

    Jose A. Molina Veteran
    Builder

    Joined:
    Mar 7, 2016
    Messages:
    56
    Likes Received:
    48
    My first build is this Beast. I call her Roberta Clementine named after the school i work for which is Roberto Clemente Charter School which in turn is named after Roberto Clemente the Puerto Rican Pittsburgh Pirates Player. She's a wolfstrap/prusa variant i cobbled together in my garage to teach myself. i'm building some aluminum versions for my school where i hope to start a robotics club. The children printers will be the Clementine Sisters Starting with Alphabetical names like hurricanes. the one currently under construction is names Alice Clementine and i'm trying to incorporate v-slot into my design.


    Attached Files:

    dadeline, Joe Santarsiero and MaryD like this.
  19. Tim Pierce

    Tim Pierce Well-Known
    Builder

    Joined:
    Jul 11, 2015
    Messages:
    5
    Likes Received:
    4
    dadeline and MaryD like this.
  20. alain maillet

    alain maillet Well-Known
    Builder

    Joined:
    Oct 17, 2015
    Messages:
    1
    Likes Received:
    4
    This is my 1500 x 1000 x 350 cnc router. Has a ballscrew for the z axis and belts for x an y. Eventually going to upgrade to ballscrews on all axis and get a bigger spindle. I still need to finish the wiring by adding cable tracks and make a control box also. 20160526_163515.jpg 20160526_164315.jpg 20160526_164332.jpg

    dadeline and MaryD like this.
  21. Tom SAULNIER

    Builder

    Joined:
    Sep 5, 2014
    Messages:
    1
    Likes Received:
    2
    My first build was a RepRap. Currently designing an OX based machine convertible between CNC and Laser, with both horizontal and vertical beds.

    dadeline and MaryD like this.
  22. Cecil Clements

    Cecil Clements Well-Known
    Builder

    Joined:
    Dec 3, 2014
    Messages:
    1
    Likes Received:
    2
    my first project was a Delta 3d printer! Since then I have made an eggbot and i'm currently getting ready to start a 1M x1.5M cnc router


    Attached Files:

    dadeline and MaryD like this.
  23. John Mueller

    John Mueller Journeyman
    Builder

    Joined:
    Aug 5, 2015
    Messages:
    21
    Likes Received:
    32
    My first build keeps morphing into other builds, a bit like Lego. I keep looking for that perfect combination of what I want from it all. Love the parts, the community is amazing, thanks to Mark and team.

    What I have ended up with is the combination of parts for a C-Beam Plate Machine, to bits from the OX. I ended up with the creative name of OxMill, and it is a smaller machine that suits just what I am going to need it for. After buying other desktop machines, none of them can yet compare to what I can achieve with OpenBuilds. So I sent them all back.

    Over the course of ordering all the parts from Mark, I have had the C-Beam machine fully assembled, torn apart and upgraded into a 3D printer (from MakerFarm which already has OB parts), I have made a sanding dust shield from the V-Slot, and have enough C-Beam to build a 4'x6' monster CNC. I am most happy with how the OxMill fits on my desk, leaves me room to work around it and keep all my clutter in just the right spots.

    If it was not for this community of members, the team, the parts, I would not have had the ability to assemble what I have today. Thanks, enjoy the pictures, I will be uploading more soon. I have finished the design for my X/Y plate, right now it is just 3D printed so it is funny to see the flex in that PETG material while on the machine. Can't wait to finalize the part, mill it from proper aluminum and share it. (actually have two custom pieces I will be sharing).

    Cheers all, enjoy!!

    On a side-note all the spare parts make great toys for my twins (attended only, as I would not want them to lose anything). ;)


    Attached Files:

    dadeline, Kyo, MaryD and 1 other person like this.
  24. Claghorn

    Claghorn Well-Known
    Builder

    Joined:
    Feb 15, 2015
    Messages:
    1
    Likes Received:
    2
    I don't know if a project in progress counts, but I'm putting together a core-XY 3D printer (currently progress has been interrupted by needing to work on my house instead :).

    [​IMG]

    Vast amounts of details here: Core XY Project

    dadeline and MaryD like this.
  25. Rob Shaver

    Rob Shaver Well-Known
    Builder

    Joined:
    Jan 29, 2015
    Messages:
    8
    Likes Received:
    5
    MY FIRST BUILD

    In 1964, when I was in the eighth grade, I built a simple light-seeking robot. Looking back some fifty-two years it seems more remarkable now than it did then. While I was obsessed with learning electronics, I really didn’t know much.

    It all started with a story in Popular Electronics. Every month there was a “Carl & Jerry” story about two young guys who built electronics gadgets and had adventures. John T. Frye started writing these stories in October of 1954, which I learned from an essay, An Appreciation by Jeff Duntemann. (Jeff has preserved all of these stories and offers them for sale on the same page. Thanks, Jeff.)

    But I digress. That November in 1963 I read the story, The Lightning Bug. By this time Carl and Jerry were in college, studying electronics and dating. They built a robot, although they didn’t call it that, as a gag to scare some sorority pledges. The idea was this lighting bug would spring into action when it detected light from a flashlight in a dark barn, rolling toward the light making clicking noises and flashing a light on its tail. What happened was quite different, however. You’ll have to read the story to find out.

    I liked the idea immediately. Simple and fun. So I committed to building something like it. I had a toy tank with dual motors which permitted it to steer by changing the speed of one track or the other. I knew I could buy some solar cells for sensing the light. All I needed was a couple of amplifiers to increase the signal from the solar cells to a level that could drive the motors.

    But where could I get these amplifiers? I really didn’t know much about it then. What I did was pour over all my old issues of Popular Electronics to find circuits for simple amplifiers. There were lots of them to choose from so I picked the circuit with the fewest components. Doesn’t that seem like a reasonable idea? I did not even know Ohm’s Law yet, nor had I studied algebra yet or had the concept of amplifier gain.

    I spent a month gathering the parts and fabricating what came to be known as Robbie’s Turtle. It used a six-volt carbon-zinc lantern battery for power. There were two heat-sinks for the two power transistors .. I knew they were supposed to be on heat sinks but not really why … all under a plastic dome from a Ronson Cigarette lighter display case.

    No testing was done before the entire project was finished. Why would I test it? It would work, I was sure. Well, I turned out the light in my bedroom, flipped the switch to turn the turtle on and then pointed my lit flashlight at it.

    Nothing. No movement. No sound. Nothing at all.

    I was devastated, defeated, demoralized and depressed. I could not understand it. I didn’t know what to do. Finally, I went downstairs and, nearly in tears, told my dad that it didn’t work. Maybe I even stomped my foot.

    Looking back now I realize how much common sense my Dad had. He didn’t know anything really about electronics but he was smart for sure. He gave me a suggestion that drilled right down to the core of the issue. How could I have missed something so simple and obvious?

    He said, “Did you try a brighter light?” Wow. What genius. What insight. A. Brighter. Light.

    I ran upstairs, took the lamp shade off of my bedside lamp and waved that bare light bulb (maybe sixty watts) close to the turtle and … nothing. But now I was on a roll. I went back downstairs into the closet and pulled out the big guns … my Dad’s four-bulb movie light-bar. My Dad saw me carry it by but didn’t say a thing.

    Back in my room I plugged it in and turned it on … all four three hundred watt bulbs. The room lit up like noon on the summer equinox. Even behind it, the heat was palpable. But that mechanical turtle spun around toward me and came running.

    By this time, my Mother and Father were standing in the doorway. I think they were proud. I know I was.

    I still have it, ravaged by time, the plastic from the toy tank is so brittle, every time I pick it up some more bits fall off. Here're a couple of snaps I took of it today.

    [​IMG] [​IMG]

    dadeline and MaryD like this.
  26. Rob Shaver

    Rob Shaver Well-Known
    Builder

    Joined:
    Jan 29, 2015
    Messages:
    8
    Likes Received:
    5
    I have no idea how to post photos with this tool. Here are direct links.

    RobRobot-2 - r39525's library
    RobRobot-1 - r39525's library

    dadeline and Keith Davis like this.
  27. Keith Davis

    Keith Davis Master
    Builder

    Joined:
    Dec 11, 2013
    Messages:
    170
    Likes Received:
    112
    dadeline, MaryD and Rob Shaver like this.
  28. Rob Shaver

    Rob Shaver Well-Known
    Builder

    Joined:
    Jan 29, 2015
    Messages:
    8
    Likes Received:
    5
    Thanks, Keith. I appreciate the compliment. Unfortunately, Popular Electronics is no longer published. The Wikipedia article shows the cover of the January 1975 Popular Electronics magazine with the Altar 8800 on it. I was a junior in college and I still have my Altar too. That took me into a microprocessors frenzy. For the first half of my career, almost everything I designed had a microprocessor in it including my first design on my first job out of college, Embargo, an arcade video game.

    dadeline likes this.
  29. wutang700

    wutang700 Well-Known
    Builder

    Joined:
    May 26, 2016
    Messages:
    2
    Likes Received:
    2
    My first Project. X-carve design mixed with scrap aluminum pieces. Still never complete though. Really want to make a 3d printer as well.


    Attached Files:

    dadeline and MaryD like this.
  30. Jurgen

    Jurgen Well-Known
    Builder

    Joined:
    Dec 11, 2015
    Messages:
    13
    Likes Received:
    18
    Hi.
    My first build and I am still busy with my Voxel OX ;-) .... does it ever end?

    This is what you get when you use V-Slot @ 50cm pre-cut.
    The only thing I did cut was the x-axis V-slot( shortened by ~4cm).
    The built area: 275 x ~310 x ~310
    (with some slight modifications to the Y-axis idler& tension-er and the motor mount
    There is still a little room ( up to 4cm) for increasing the "x" range.

    The big print bed 305mm x305mm is on ;-)

    I did not have a plan for how to mount a big built plate,
    because at the time I did not now how big the built area was going to be!
    ....and I also forgot to order a piece of V-Slot for the carrier ;-)
    ....and shipping to my place takes at least 6 weeks!
    So I had to find a way to print a carrier for a 305x305mm bed on my Wanhao I3 (200x200cm) printer. ...Turned out pretty much OK ...not sure if it will last forever.

    ...and I am still busy with the "cable mess-cover" and the cable routing ;-)

    Best regards from Namibia ;-)
    Jurgen

    IMG_0618.JPG IMG_0620.JPG IMG_0621.JPG IMG_0622.JPG IMG_0623.JPG IMG_0624.JPG IMG_0625.JPG

    dadeline and MaryD like this.
Thread Status:
Not open for further replies.

Share This Page

  • About Us

    The OpenBuilds Team is dedicated helping you to Dream it - Build it - Share it! Collaborate on our forums and be sure to visit the Part Store for all your Building needs!
  • Like us on Facebook

  • Support Open Source FairShare Program!

    OpenBuilds FairShare Give Back Program provide resources to Open Source projects, developers and schools around the world. Invest in your future by helping others develop theirs!

    Donate to FairShare!
