Prusa i3 (Acrylic frame with OB rods)

Discussion in '3D printers' started by dddman, Feb 6, 2015.

  1. dddman

    dddman Master
    Builder

    Joined:
    Mar 2, 2014
    Messages:
    433
    Likes Received:
    152
  2. Robert Hummel

    Robert Hummel Custom Builder
    Staff Member Moderator Builder

    Joined:
    Nov 14, 2013
    Messages:
    978
    Likes Received:
    670
    Build is complete :)

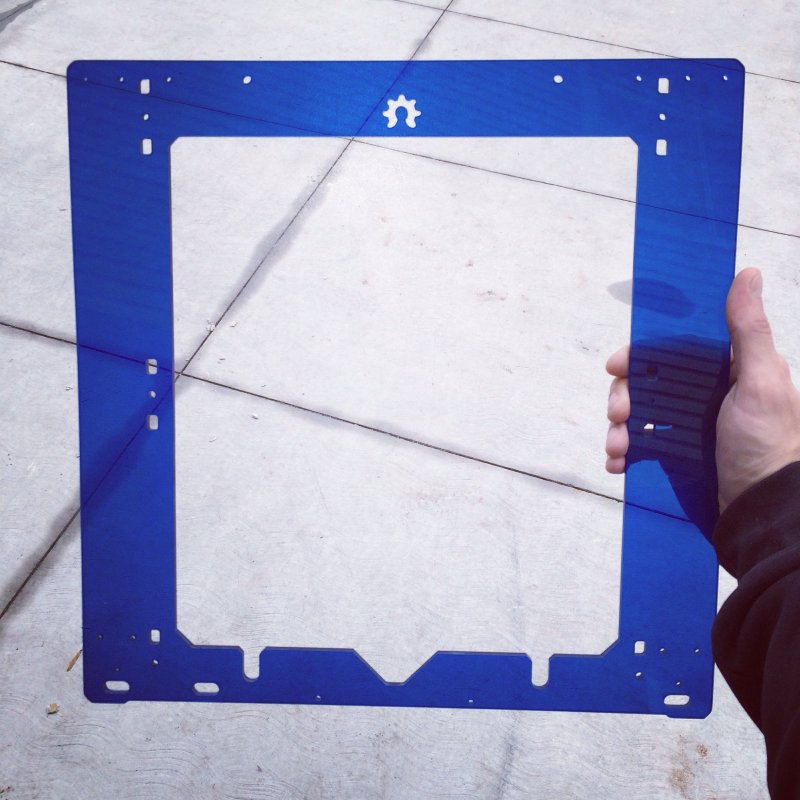

    Special thanks to dddman for the printed parts to get me running.
    Here are some pics :)

    The completed printer :)

    After giving the printer to my little princess, look out she has a frog army! :p

    Card holder for the wife :thumbsup:

    And a close up of the frogs print :)

    MaryD, Mopar32985, GrayUK and 4 others like this.
  3. Robert Hummel

    Robert Hummel Custom Builder
    Staff Member Moderator Builder

    Joined:
    Nov 14, 2013
    Messages:
    978
    Likes Received:
    670
    12 hr plus print in PLA :D

    MaryD, Mopar32985 and GrayUK like this.
  4. Tweakie

    Tweakie OpenBuilds Team
    Staff Member Moderator Builder

    Joined:
    Jan 18, 2014
    Messages:
    787
    Likes Received:
    290
    Excellent work Robert. :thumbsup:

    Tweakie.

  5. Robert Hummel

    Robert Hummel Custom Builder
    Staff Member Moderator Builder

    Joined:
    Nov 14, 2013
    Messages:
    978
    Likes Received:
    670
    Ty bud!

    Here's my custom heatbed I designed in sketchup, milled and then added a layer of cork then aluminum tape as a insulating layer in attempt to have a faster heating time :)

  6. Jason Farley

    Jason Farley Well-Known
    Builder

    Joined:
    Jan 19, 2015
    Messages:
    29
    Likes Received:
    4
    Forgive my ignorance but is what I am seeing above a copper coated board (circuit board blank if you will) milled to create the heat "grid". Then backed with cork and covered with aluminum tape?

    Does the copper "circuit" have the required resistance to generate the heat required for the bed?

  7. dddman

    dddman Master
    Builder

    Joined:
    Mar 2, 2014
    Messages:
    433
    Likes Received:
    152
    The traces are based on the Prusa board design

    Robert Hummel likes this.
  8. JustinTime

    JustinTime Master
    Builder

    Joined:
    Dec 18, 2013
    Messages:
    772
    Likes Received:
    152
    Isn't the cork acting as an insulator and preventing the heat to get to the top?

  9. dddman

    dddman Master
    Builder

    Joined:
    Mar 2, 2014
    Messages:
    433
    Likes Received:
    152
    The board is upside down (the cork will go under. It's meant to concentrate the heat to the top (no loss from ambiant air)

    Robert Hummel likes this.
  10. Robert Hummel

    Robert Hummel Custom Builder
    Staff Member Moderator Builder

    Joined:
    Nov 14, 2013
    Messages:
    978
    Likes Received:
    670
    Yes and yes again :)
    It's resistance is 3.5 ohms
    This is simply an experiment in hopes of good results :nailbite:

  11. Jason Farley

    Jason Farley Well-Known
    Builder

    Joined:
    Jan 19, 2015
    Messages:
    29
    Likes Received:
    4

    Very nice. I will be watching to see your results. I need a larger size bed for a project and anything over 12" x 12" starts getting pretty expensive. Copper clad board can be be found pretty darn cheap and I could see a scenario where linking several boards together would be easy.

    Did you use 1oz or 2oz board for your design above?
    I assume your are putting a sheet of Borosilicate on top of the exposed copper grid. Is that correct?

    Keep up the good work!

  12. Robert Hummel

    Robert Hummel Custom Builder
    Staff Member Moderator Builder

    Joined:
    Nov 14, 2013
    Messages:
    978
    Likes Received:
    670
    Not sure of the oz count as I picked up the clad as you said cheep at my local surplus.
    $16 for a 300x300 sheet
    I will be putting regular temped glass or mirror, will see what the glass cutter three doors down has on hand

  13. Robert Hummel

    Robert Hummel Custom Builder
    Staff Member Moderator Builder

    Joined:
    Nov 14, 2013
    Messages:
    978
    Likes Received:
    670
    Here it is for now, mounted with tempered glass

  14. Mopar32985

    Mopar32985 Veteran
    Builder

    Joined:
    Dec 7, 2013
    Messages:
    128
    Likes Received:
    47
    Looks great cant wait to hear how the heated build plate works

  15. Robert Hummel

    Robert Hummel Custom Builder
    Staff Member Moderator Builder

    Joined:
    Nov 14, 2013
    Messages:
    978
    Likes Received:
    670
    The frame files are done :D


    Attached Files:

    Mopar32985 likes this.
  16. JustinTime

    JustinTime Master
    Builder

    Joined:
    Dec 18, 2013
    Messages:
    772
    Likes Received:
    152
    Robert, how does the heater bed that you made works out?

  17. Robert Hummel

    Robert Hummel Custom Builder
    Staff Member Moderator Builder

    Joined:
    Nov 14, 2013
    Messages:
    978
    Likes Received:
    670
    I'm assembling and wiring the OBi3 now :D
    I just finished the mechanical part of the build last night.
    Will be testing real soon :thumbsup:

    Mopar32985 likes this.
  18. Mopar32985

    Mopar32985 Veteran
    Builder

    Joined:
    Dec 7, 2013
    Messages:
    128
    Likes Received:
    47
    Hey guys very excited to get my build going thanks again Robert for cutting the frame plates for me. Any idea when a parts list will be up excited to get all the goodies together!

  19. dddman

    dddman Master
    Builder

    Joined:
    Mar 2, 2014
    Messages:
    433
    Likes Received:
    152
    I'll work on it tonight :)

    Robert Hummel likes this.
  20. Mopar32985

    Mopar32985 Veteran
    Builder

    Joined:
    Dec 7, 2013
    Messages:
    128
    Likes Received:
    47
    dddman great man thanks the prints coming off this printer are looking great

    Robert Hummel likes this.
  21. Robert Hummel

    Robert Hummel Custom Builder
    Staff Member Moderator Builder

    Joined:
    Nov 14, 2013
    Messages:
    978
    Likes Received:
    670
    No prob :)

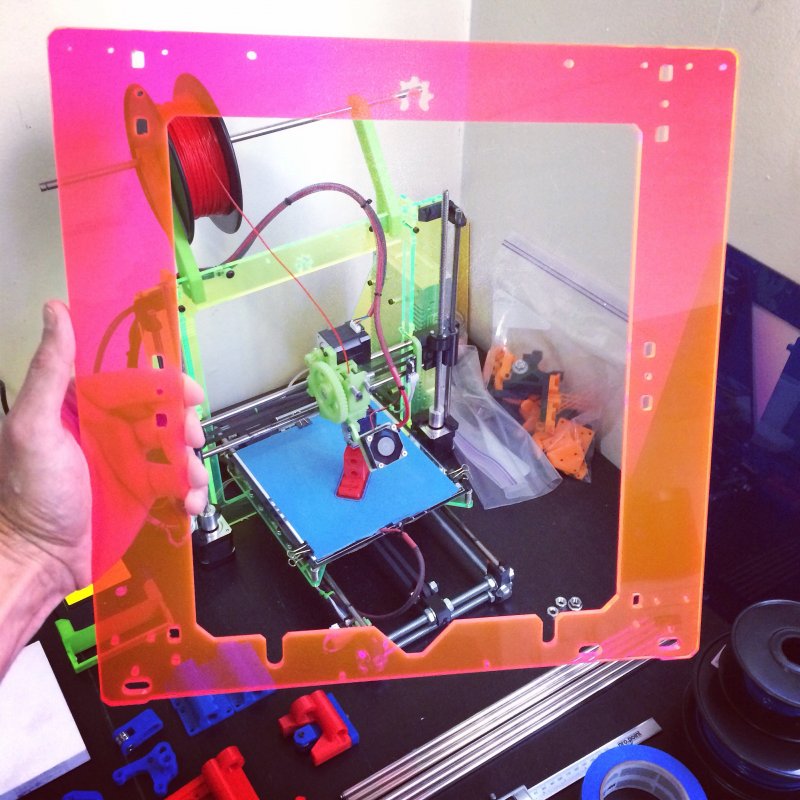

    Frame is packed and ready to ship
    I really like the Blue :)
    I also picked up a neon orange that glows real bright when the light hits it :)

    Mopar32985 likes this.
  22. Mopar32985

    Mopar32985 Veteran
    Builder

    Joined:
    Dec 7, 2013
    Messages:
    128
    Likes Received:
    47
    Awesome cant wait to get to building it!

  23. Robert Hummel

    Robert Hummel Custom Builder
    Staff Member Moderator Builder

    Joined:
    Nov 14, 2013
    Messages:
    978
    Likes Received:
    670

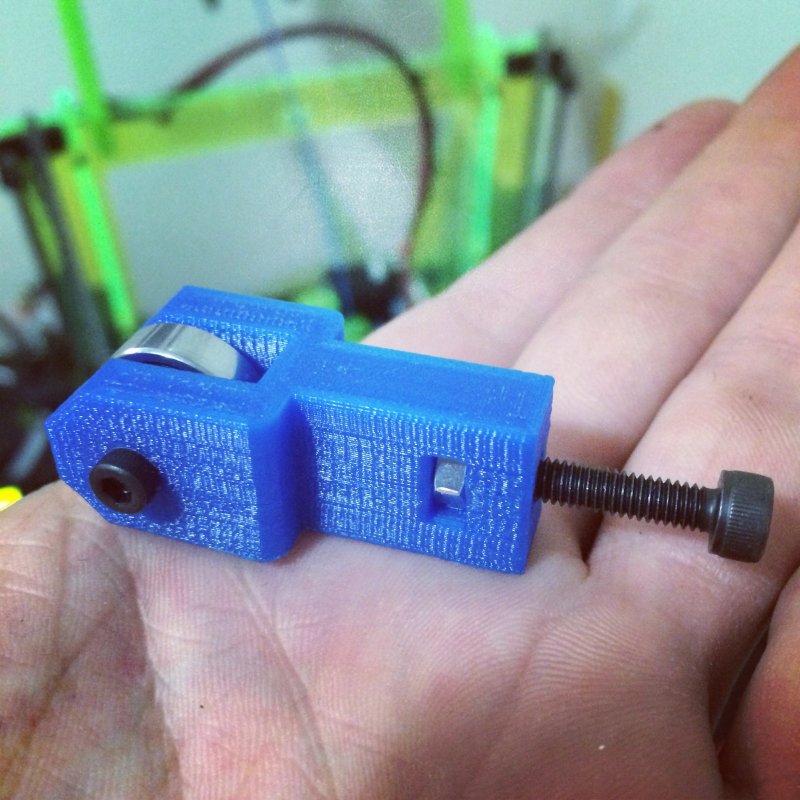

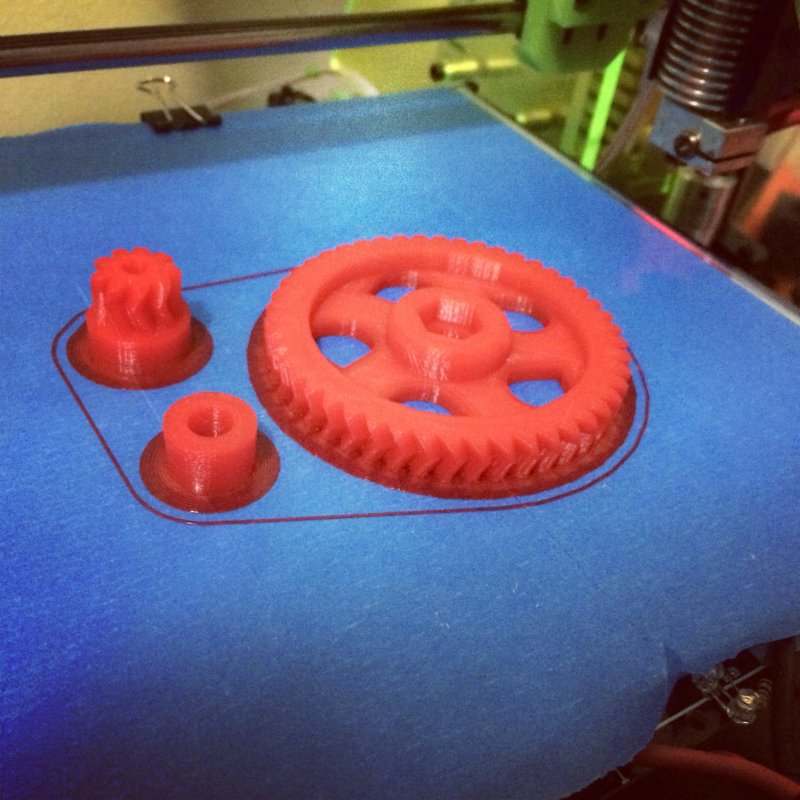

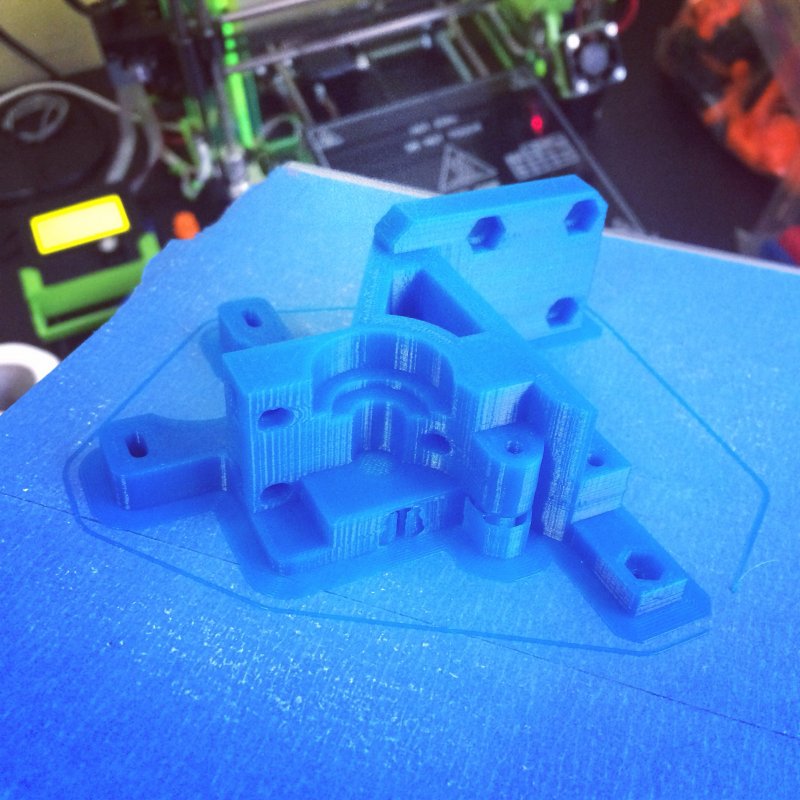

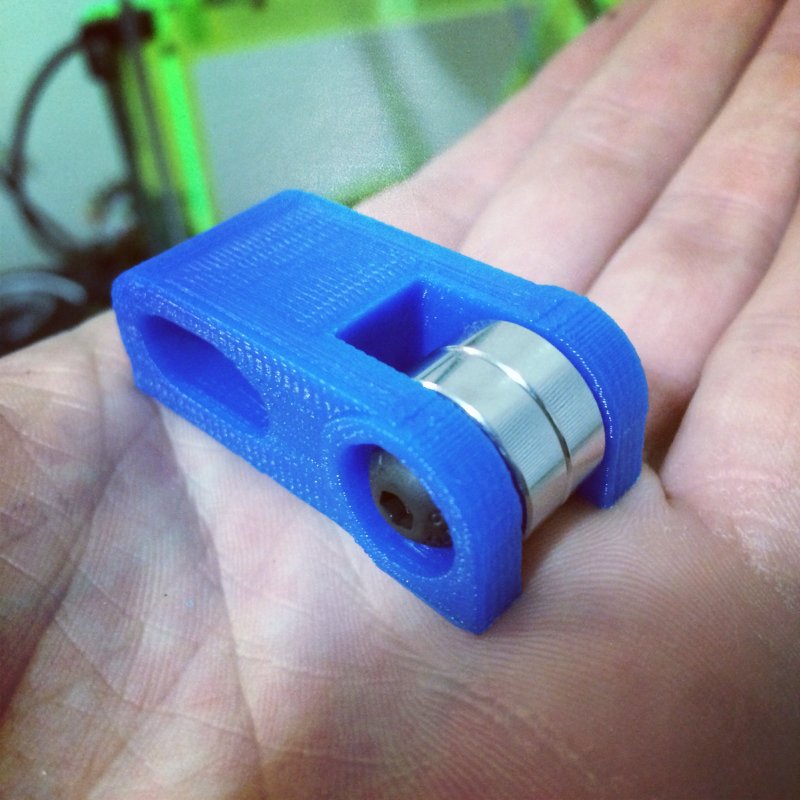

    Here are a few pics of the parts I'm printing for others :)

    Mopar32985 likes this.
  24. Mopar32985

    Mopar32985 Veteran
    Builder

    Joined:
    Dec 7, 2013
    Messages:
    128
    Likes Received:
    47
  25. dddman

    dddman Master
    Builder

    Joined:
    Mar 2, 2014
    Messages:
    433
    Likes Received:
    152
    Mopar32985 likes this.
  26. Robert Hummel

    Robert Hummel Custom Builder
    Staff Member Moderator Builder

    Joined:
    Nov 14, 2013
    Messages:
    978
    Likes Received:
    670
    Be sure to use net fab to fix the error in the stl from thingverse

    Mopar32985 likes this.
  27. dddman

    dddman Master
    Builder

    Joined:
    Mar 2, 2014
    Messages:
    433
    Likes Received:
    152
    BOM has been posted, minus the screws :) It's hard to measure screwed screws, but I will update it soon :) I added the .stl for the bed holder and the extruder (fixed with netfabb)

    Mopar32985 and Robert Hummel like this.
  28. Mopar32985

    Mopar32985 Veteran
    Builder

    Joined:
    Dec 7, 2013
    Messages:
    128
    Likes Received:
    47
  29. dddman

    dddman Master
    Builder

    Joined:
    Mar 2, 2014
    Messages:
    433
    Likes Received:
    152
    I have to try it!!!

    Mopar32985 likes this.
  30. Mopar32985

    Mopar32985 Veteran
    Builder

    Joined:
    Dec 7, 2013
    Messages:
    128
    Likes Received:
    47
    if it works like i have seen in youtube videos it will get rid of what i think is the hardest part of 3d printing
